How to Check Connection ASUS Lyra Mesh WiFi System

Authored by: Support.com Tech Pro Team

1. Introduction

Within this guide you'll learn how to check the connection status of the ASUS Lyra WiFi Mesh System.

You can check the status in three ways:

• Looking at the LED lights on the hubs themselves,
• Using the ASUS Lyra app on a phone or tablet,
• Accessing the web interface on a computer.

The type and amount of network related information that you get depends on which method you use.

Tools You'll Need:

• No extra tools are needed.

-->

Supplies You'll Need:

• No extra supplies are needed.

-->

Before You Begin:

Your need to have the ASUS Lyra app installed

• How to Install the ASUS Lyra App

2. Check ASUS Lyra Connection Status on Hub

There is a large indicator light on top of each ASUS Lyra hub that changes color to help you understand the connection status of the device.

Primary Hub

Solid Cyan

Boot up completed and connected to the Internet.

Solid Orange

Boot up completed and not connected to the Internet.

Secondary Hubs

Solid Cyan

Boot up completed and connected to the primary Lyra.

Solid Red

Boot up completed and not connected to the primary Lyra.

Solid Green

Using Ethernet cable to connect to Lyra network.

3. Check ASUS Lyra Connection Status in Lyra App

1. Open the ASUS Lyra App.

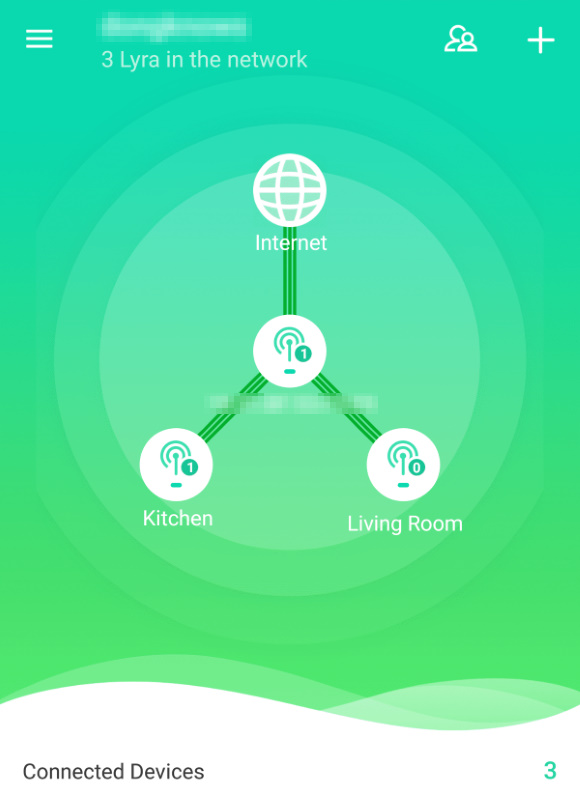

1. On the main screen you'll see the network status in the middle and the number of connected devices below. Tap an item in the middle to see more details about it.


4. Check ASUS Lyra Connection Status in Web Interface

1. Open the browser that you use to go online and navigate to router.asus.com.

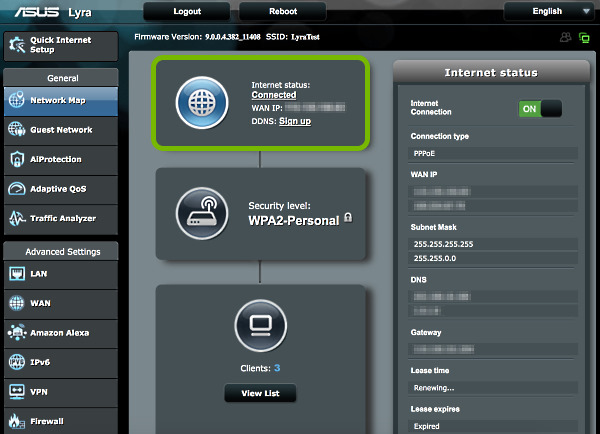

1. On the main screen you'll see the network status towards the top middle.
