How to Install Wall Mount for Samsung HW-Q950A Soundbar

Authored by: Support.com Tech Pro Team

1. Install Wall Mount

INSTRUCTIONS ON HOW TO INSTALL WALL MOUNT

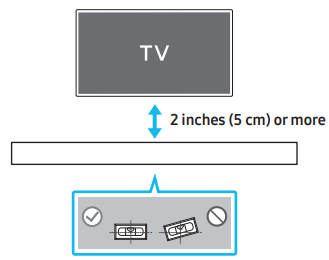

1. Place the Wall Mount Guide against the wall surface.
   • The Wall Mount Guide must be level.
   • If your TV is mounted on the wall, install the Soundbar at least 2 inches (5 cm) below the TV.

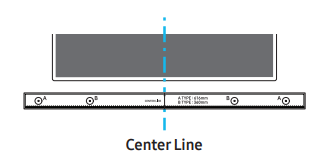

1. Align the Wall Mount Guide’s Center Line with the center of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.
   • If you are not mounting below a TV, place the Center Line in the center of the installation area.

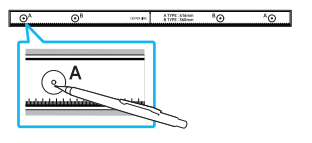

1. Push a pen tip or sharpened pencil tip through the center of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide


1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.
   • If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

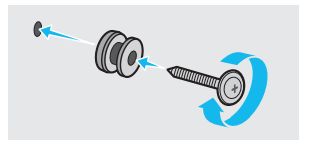

2. . Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.


1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws


1.
   • When assembling, make sure the hanger part of the BracketWall Mounts are located behind the rear of the Soundbar.

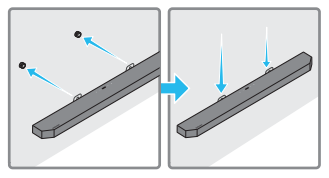

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

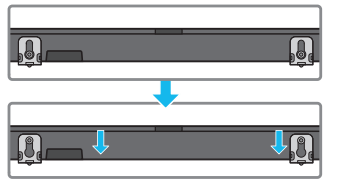

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.
   • Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws
