How to Program a Comcast Xfinity X1 Remote

Authored by: Support.com Tech Pro Team

How to Program a Comcast Xfinity X1 Remote

Programming your Comcast Xfinity X1 remote allows you to control your TV and Xfinity box with a single remote. Here’s a detailed guide on how to do it:

1. Turn on the TV and Xfinity Box:
   • Ensure your TV and Xfinity X1 TV Box are both powered on and properly connected.
2. Hold Setup Button:
   • Locate the “Setup” button on your Xfinity remote.
   • Press and hold the “Setup” button until the LED light on the remote changes from red to green.
3. Enter the Manufacturer Code:
   • Enter the five-digit code for your TV brand. Codes can be found on the Xfinity website or in the user manual.
   • The LED should flash green twice if the code is entered correctly.
4. Test the Remote:
   • Point the remote at the TV and press the power button.
   • If the TV turns off, the remote is successfully programmed.
   • If the TV does not turn off, repeat the steps with a different code from the list.
5. Additional Functions:
   • To control the volume and power for an audio device (like a soundbar), follow the same steps but enter the code for the audio device instead of the TV.
   • Program the remote for voice commands by holding the “Microphone” button and speaking your command once the remote is set up.
6. Programming for Additional Devices:
   • To program the remote for additional devices, such as audio receivers, follow the same steps and use the appropriate codes for each device.
7. Reprogramming the Remote:
   • If you change devices or need to reset the remote, hold the Setup button until the LED turns green, then enter “9-8-1” to clear the current settings.

Contact Support.Com

If you are still having trouble, refer to the Step-By-Step Guide below, or Contact Support.Com for Personalized Assistance.

1. Introduction

When you've got the Comcast Xfinity service, you'll be given their universal remote. This remote can be used with most of your entertainment devices like your TV Box, Television, or Receiver.

Tools You'll Need:

• A paperclip
• iPhone charging cable
• Access to a computer with iTunes installed
• Any other non-consumable tools needed
• Comment out tools section if no tools are necessary

-->

Supplies You'll Need:

• Zip ties
• Any other consumable supplies
• Comment out supplies section if no supplies are necessary

-->

Before You Begin:

• You must have access to a computer with iTunes installed.
• You must have that thing for the other thing so you can do the thing.

You must have this thing before you whatever.

• Title of GP User Should Do First
• Title of GP User Should Do First
• Each individual prereq should have its own box like this. Not all will contain multiple links.
• Comment out prerequisites section if no prereqs are necessary

-->

What Type of Remote do You Have?

To get started, we need to determine whether or not your remote control has a setup button.

Remotes with Setup Buttons

XR11, XR5 Remote

XR2 Remote

Silver Remote

Remotes Without Setup Buttons

XR15 Remote

2. How to Pair an X1 Remote to an Xfinity TV Box

Your Xfinity X1 Remote can only be paired with one TV Box at a time. If you wish to pair it with another box you'll need to repeat the pairing steps.

1. Turn your television on.


1. Make sure it is on the right input for your TV Box.


1. On your remote, press and hold the Setup button.

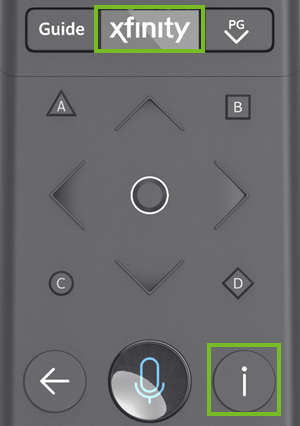

1. If you don't have a setup button you can press and hold the Xfinity and Info(i) buttons together.


1. The LED at the top of the remote will change from red to green.


1. Press the Xfinity button.

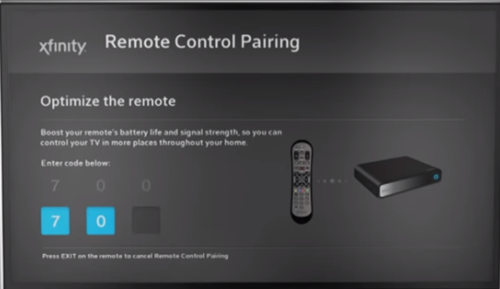

1. A 3-digit code will appear on your television's screen. Using the remote, input the code.

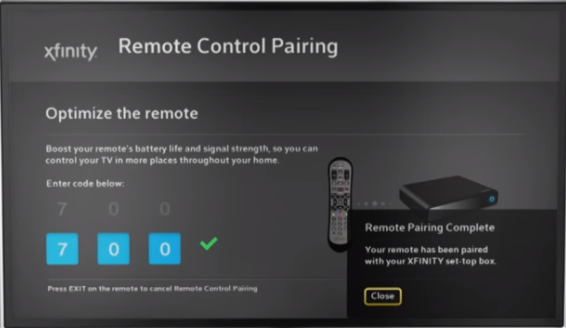

1. Your television will tell you when the remote has paired.

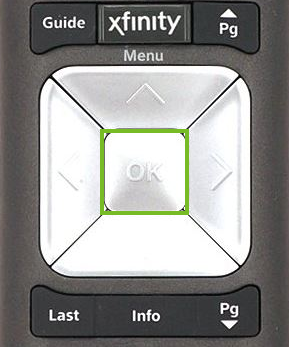

1. Press the OK button on your remote to finish.


3. How to Pair an X1 Remote to an AVR or Television

Pairing your remote to your television or AVR unit will allow you to turn off your television and AVR, select inputs, and adjust the volume.

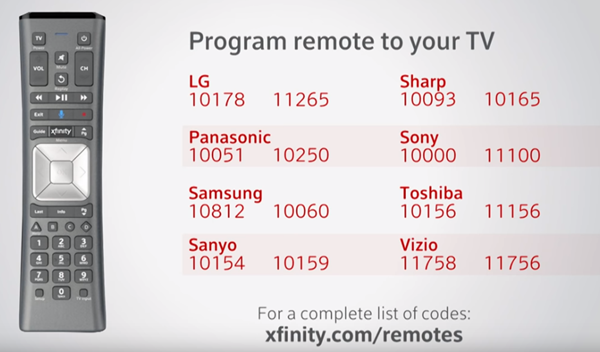

1. Manufacturer codes tell the remote what decide they are pairing with. You can often find them with your remote or component device's documentation.


1. You can also navigate to xfinity.com/remotes to find a list of codes.

How to Use Xfinity's Remote Code Lookup

1. Navigate to xfinity.com/remotes.

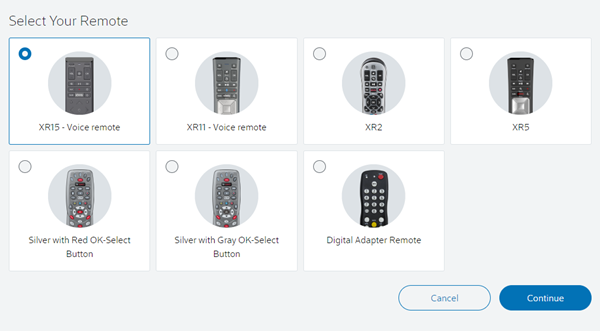

1. Select your remote and then click Continue.

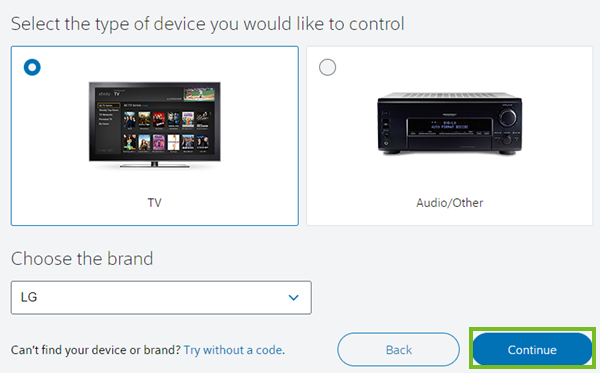

1. Select the type of device you would like to control.


1. Select the brand of the device.


1. Click Continue.


1. The next page will give you the most likely codes.


If You Have Your Manufacturer Code

1. Turn your television on.


1. On your remote, press and hold the Setup button.


1. If you don't have a setup button you can press and hold the Xfinity and Info(i) buttons together.


1. The LED at the top of the remote will change from red to green.


1. Type in the code you found in the previous step using your remote's number pad.


1. When your remote has been successfully paired, the LED at the top will flash green twice.


If You Don't Have Your Manufacturer Code

1. Turn your television on.


1. On your remote, press and hold the Setup button.


1. If you don't have a setup button you can press and hold the Xfinity and Info(i) buttons together.


1. The LED at the top of the remote will change from red to green.


1. Enter 9-9-1.


1. The LED should flash green twice.

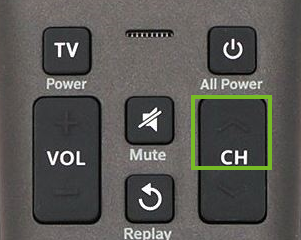

1. Press CH^ (Channel Up) multiple times until the TV turns off.


1. Once the TV turns off, press Setup to lock in the code.


1. Press the TV Power button on the remote. If the TV turns on, you have successfully programmed your remote to control your TV.
