Setting Up Wired/Wireless Connection to D-Link Router
Setting up both a wired and wireless connection to a D-Link Router is a critical step in creating a home network. D-Link routers are commonly used for their reliability and performance. Follow these step-by-step instructions to configure both a wired and wireless connection:
Before you begin:
Ensure you have your D-Link Router, power adapter, and Ethernet cable ready.
Have your Internet Service Provider (ISP) account information, including your username and password (if needed).
Setting up a Wired Connection:
Connect Hardware:
Plug the D-Link Router into a power outlet using the provided power adapter.
Use an Ethernet cable to connect your modem to the WAN (Internet) port on the D-Link Router.
Connect your computer to any of the LAN ports on the router using another Ethernet cable.
Power On the Router: Turn on the D-Link Router using the power button, if available. Wait for the router to boot up. This may take a few minutes.
Access the Router's Web Interface:
Open a web browser on your connected computer.
In the address bar, enter the default IP address for D-Link routers, which is often http://192.168.0.1 or http://192.168.1.1, and press Enter.
You will be prompted to log in. Use the default username and password (usually "admin" for both), which can be found in the router's manual or on a sticker on the router itself.
Configure Internet Settings:
Once logged in, navigate to the WAN (Internet) settings.
Select the appropriate connection type based on your ISP's requirements (usually DHCP or PPPoE).
Enter the necessary information provided by your ISP, such as username and password.
Save the settings.
Test the Wired Connection: Open a web browser and try to access a website to verify that your wired connection is working correctly.
Setting up a Wireless Connection:
Access the Router's Web Interface (if not already logged in):
Open a web browser.
Enter the router's IP address (usually http://192.168.0.1 or http://192.168.1.1) in the address bar.
Log in using your router's admin credentials.
Configure Wireless Settings:
Navigate to the wireless settings section in the router's web interface.
Set your SSID (Wi-Fi network name) to something unique.
Choose a strong Wi-Fi password (WPA2 is recommended) to secure your network.
Select the appropriate Wi-Fi security mode and encryption settings.
Save and Apply Settings: After configuring the Wi-Fi settings, save and apply the changes. The router may need a moment to apply the settings.
Connect to the Wi-Fi Network:
On your wireless device (e.g., laptop, smartphone), search for available Wi-Fi networks.
Locate and select your D-Link Router's SSID.
Enter the Wi-Fi password you set during configuration.
Test the Wireless Connection: Once connected, open a web browser on your wireless device and confirm that you can access websites.
You've now successfully set up both a wired and wireless connection to your D-Link Router. You can connect multiple devices wirelessly to your network using the SSID and password you configured.
Contact Support.Com
If you are still having trouble, refer to the Step-By-Step Guide below, or Contact Support.Com for Personalized Assistance.
1. Introduction
A router is a box that allows multiple computers, smartphones, and so on to join the same network. From there, the router is typically connected to a modem in order to provide an Internet connection to any device that is connected to the router. This guide aims to help you through the first time setup process for your router.
In the box you may have some of the following:
The router's power supply or charger.
Device manual.
Driver disc (for some models).
USB cable (for some models).
Network cable (for some models).
2. Connect Power
Please ensure that you are using the power adapter that came with your router.
Locate the power cable and connect it to a power source like an outlet or surge protector.
Plug the other end of the power cable to the router's power input, which is typically located in the rear.
Your router should power on.
3. Connect to Modem by Cable/Wire
Your router must be connected to a modem in order to provide the local network with an Internet connection.
Acquire an Ethernet cable.
Take one end of the cable and plug it into the Internet (or WAN) port on the rear of your router. The port may be blue or grey.
Take one end of the cable and plug it into an available Ethernet (or LAN) port on the rear of your modem. These ports are typically yellow.
Usually this is all that is needed to connect your router to a wired connection.
4. Login
Using a computer that is connected to the D-Link router, open a web browser such as Internet Explorer, Mozilla Firefox or Google Chrome.
Enter one of the following addresses into your browser address bar:
http://dlinkrouter.local
http://192.168.0.1
When prompted, enter the credentials to log into the router. For DIR-xxx routers, the default credentials are:
Username: admin
Password: no password
For DSR-xxx routers, the default credentials are:
Username: admin
Password: admin
5. Select Password
Wherever possible, you should pick a password that is impossible to guess and is also resistant to brute-force attacks.
Some devices or systems do not allow special characters or they may have their own requirements.
Password Dos and Don'ts
Dos:
Passwords should be long, 8-12 characters or more.
Passwords should be something easy for you to remember, but hard for others to guess or lookup.
Passwords should have lots of different character types: upper and lower case letters, numbers, and symbols.
Replacing letters with symbols is a simple way to achieve this: use @ for a, and ( for c, as example.
Passwords are personal, most services have a way to create a 'linked' account or share services with trusted friends and family.
Change passwords regularly. Every 90 to 180 days; this helps keep your accounts from being compromised long-term.
If you must write down a password or make note of it, do so only in specially designed programs, or keep and hold the physical copies with the same care and respect you would a social security card or birth certificate. Remember; anyone with your password "is you".
Don'ts:
Don't use short passwords; computers can guess them very easily.
Don't use a common word you can find in a dictionary.
Don't use information that can be looked up or guessed, such as a birthday, anniversary, or pet's name.
Don't use the same password for everything. If one password is compromised, all of the same ones are compromised across all your accounts.
Don't share passwords. People with your password "are you" to a computer system, or a service.
Don't keep the same password forever. Assume that, at some point, it will be guessed, seen, or otherwise compromised, and it must be changed.
Don't write down passwords in the open, or save them in non-encrypted files on your computer.
Password Resources
Are Password Management Programs Safe? Using a password management program can help you to create and maintain strong passwords that are different for every site and service you use.
After you login to the router's user interface, move the mouse cursor over the Settings tab.
Click Wireless from the drop down menu.
You may change the Wi-Fi Name (SSID) for both the 2.4 GHz and 5 GHz bands at this time if you choose to. The network name (or SSID) is the name others will see when searching for available wireless networks in the area.
Next to Password, enter your preferred wireless password on both 2.4 GHz and 5 GHz wireless networks.
Click Save to save your configuration.
Your wireless security settings have now been updated.
Any time you change your wireless security settings you will need to reconnect your wireless devices.
If your router is dual-band, meaning it has a 2.4 and a 5 GHz network you may need to repeat the steps listed above for each network because each network may be controlled individually. You must use different network names for each band.
If your router has a guest network you will need to repeat the steps listed above for the guest network because it is controlled separately.
7. Keeping Your Password Secure
Some precautions should be taken in order to keep your password secure.
Best practices:
Do not use a master password that you use everywhere (such as email, work, school, home, network)
If possible, do not share your password with anybody.
Passwords that are shared with others, like for a home network, should only be shared if necessary.
Be aware when typing your password in public, or that in no way anyone is watching.
Some types of electronic devices like computers and smartphones can remember passwords, so beware of devices that are not yours.
Make a schedule of when to change your password. For example, every 180 days.
It is not recommended to write down passwords. But if you have to, make sure that it is neither physically nor visually accessible by others.
8. Deciding to Update
Router updates are provided to add new security features, fix vulnerabilities, or other enhancements like performance upgrades. We recommend updating your router at this time in order to get the best possible security. Depending on the model, you may need an internet connection, access to a computer, and a formatted USB flash drive in order to update.
Wherever possible, you should pick a password that is impossible to guess and is also resistant to brute-force attacks.
Some devices or systems do not allow special characters or they may have their own requirements.
Password Dos and Don'ts
Dos:
Passwords should be long, 8-12 characters or more.
Passwords should be something easy for you to remember, but hard for others to guess or lookup.
Passwords should have lots of different character types: upper and lower case letters, numbers, and symbols.
Replacing letters with symbols is a simple way to achieve this: use @ for a, and ( for c, as example.
Passwords are personal, most services have a way to create a 'linked' account or share services with trusted friends and family.
Change passwords regularly. Every 90 to 180 days; this helps keep your accounts from being compromised long-term.
If you must write down a password or make note of it, do so only in specially designed programs, or keep and hold the physical copies with the same care and respect you would a social security card or birth certificate. Remember; anyone with your password "is you".
Don'ts:
Don't use short passwords; computers can guess them very easily.
Don't use a common word you can find in a dictionary.
Don't use information that can be looked up or guessed, such as a birthday, anniversary, or pet's name.
Don't use the same password for everything. If one password is compromised, all of the same ones are compromised across all your accounts.
Don't share passwords. People with your password "are you" to a computer system, or a service.
Don't keep the same password forever. Assume that, at some point, it will be guessed, seen, or otherwise compromised, and it must be changed.
Don't write down passwords in the open, or save them in non-encrypted files on your computer.
Password Resources
Are Password Management Programs Safe? — Using a password management program can help you to create and maintain strong passwords that are different for every site and service you use.
After you login to the router's user interface, click on the Setup tab on the top of the configuration page
Click the Wireless Settings button on the left side.
Click on Manual Wireless Network Setup.

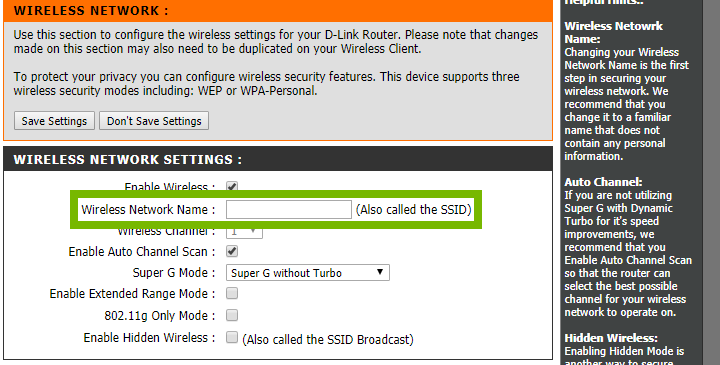

You may change the Wi-Fi Name (SSID) for both the 2.4 GHz and 5 GHz bands at this time if you choose to. The network name (or SSID) is the name others will see when searching for available wireless networks in the area.
Scroll down the page to Wireless Security Mode.
Enter your preferred wireless password under Pre-Shared Key section.
Click Save Settings to save your configuration.
Your wireless security settings have now been updated.
Any time you change your wireless security settings you will need to reconnect your wireless devices.
If your router is dual-band, meaning it has a 2.4 and a 5 GHz network you may need to repeat the steps listed above for each network because each network may be controlled individually. You must use different network names for each band.
If your router has a guest network you will need to repeat the steps listed above for the guest network because it is controlled separately.
