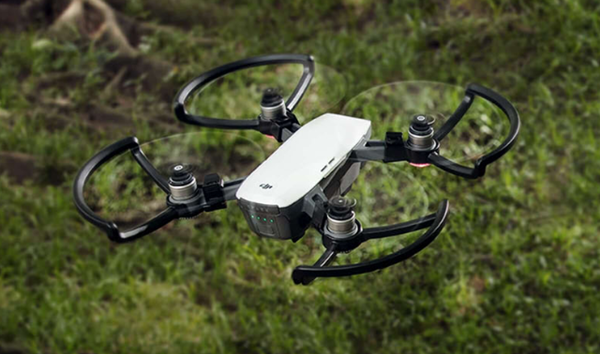

The Spark is DJI's smallest flying camera with multiple ways to enjoy and record to your heart's content. We will be setting up your new drone so you can start playing with it right away. To start we will:
Fully charge your drone's battery.
Make sure the DJI Go 4 app is installed.
Connect the controlling device to the drone(either the Remote Control or a mobile device).
Setup and activate your drone.
As with all Drone flying, please keep the following in mind:
Make sure you are properly registered with the Federal Aviation Administration, or qualify to fly without registration.
Make sure you have permission to fly from the person or group that owns the land you'll be over.
Make sure you are in-touch with the control tower before flying near an airport.
Make sure there's no obstructions, such as power lines or trees, above your flight area that could cause problems.
Make sure there's no one below your flight area that could be hurt.
Make sure you are not near government infrastructure or other sensitive properties.
Make sure the weather is safe to fly in.
Make sure you keep your drone in your sight at all times, and get help from an observer if necessary.
For more detailed information, please visit: http://knowbeforeyoufly.org/
2. Charging
Your Spark drone has an intelligent battery, that will not start up if it is not fully charged. Please charge your battery to full first.
Plug in the USB cable into the provided AC adapter and plug that into a power outlet.
Plug the other end into the Spark.
The battery will be done charging when the lights are all on or all off.
3. OS Choice
To continue, we need to know what Operating System your smartphone or tablet has.
There are 2 main Operating Systems for smartphones currently available, Android and iOS.
Android SmartphoneiOS SmartphoneAndroid smartphones are produced by multiple companies, such as Samsung, LG, Motorola, HTC, and OnePlus.Apple is the only company that makes iOS smartphones.
4. Additional Information
To better assist you, please answer this question.
5. Additional Information
To better assist you, please answer this question.
6. Connect to Wi-Fi with Remote (Android)
Let's first connect your RC to your drone. Turn on your drone.
Turn on your Remote Control (RC) by pressing the Power button. The indicator light should be red.

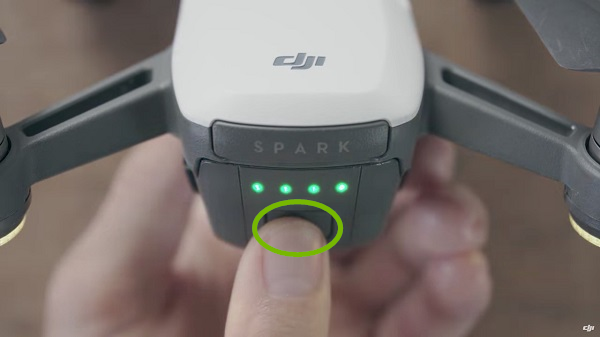

Push the Power button for 3 seconds. The lights on the drone should be blinking red.

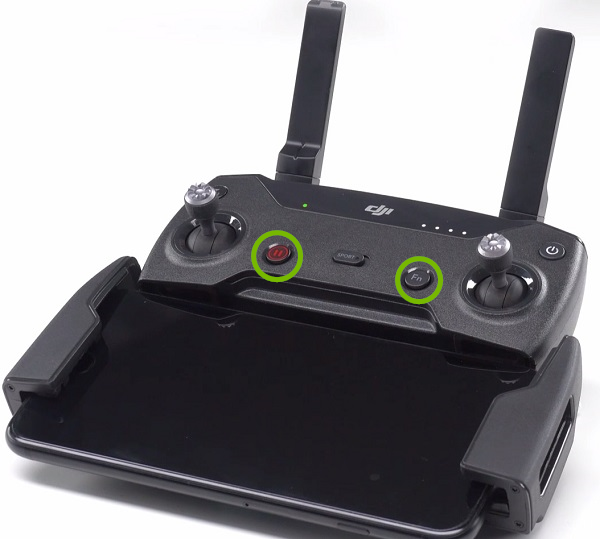

On the controller press and hold the Flight Pause Button and the Function Button and the customize button simultaneously.
The indicator light should turn green.
Open Settings on your phone or tablet.
Make sure Wi-Fi is set to ON.

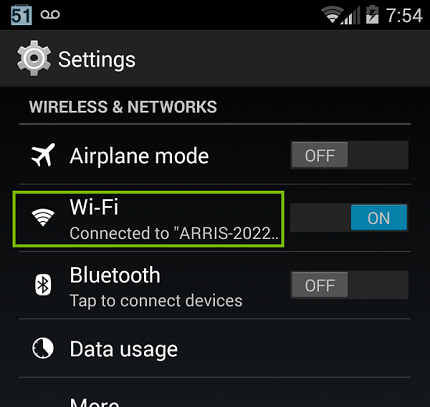

Select Wi-Fi.

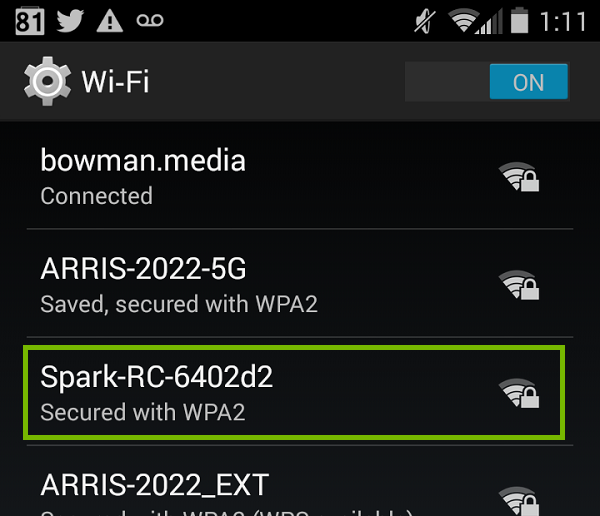

Select the Spark RC network from the list.
Enter the Wi-Fi password "12341234", then select Connect.
7. Additional Information
To better assist you, please answer this question.
8. Activation with Existing Account (Android)
Open the DJ Go 4 app on your mobile device.

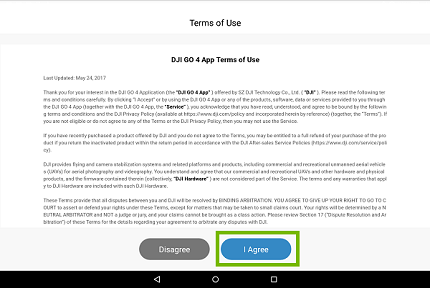

Tap I Agree.

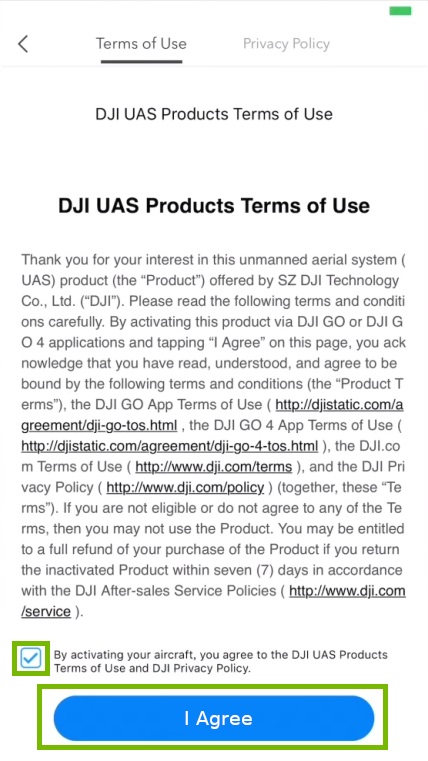

Tap the Checkbox, then tap I Agree.
Select which Location information you want to allow the app to have access too. Leaving some items disabled might affect features. Tap Next when done.

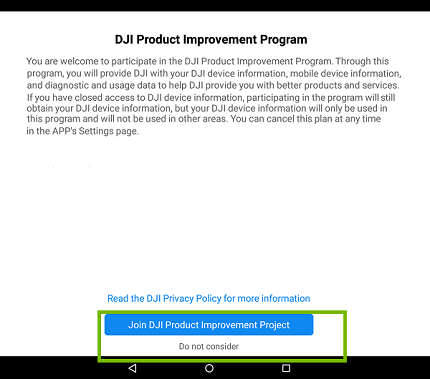

The App will ask you if you want to join a product improvement program, it is optional. Choose either Join or Do not consider.
Tap Sign In.

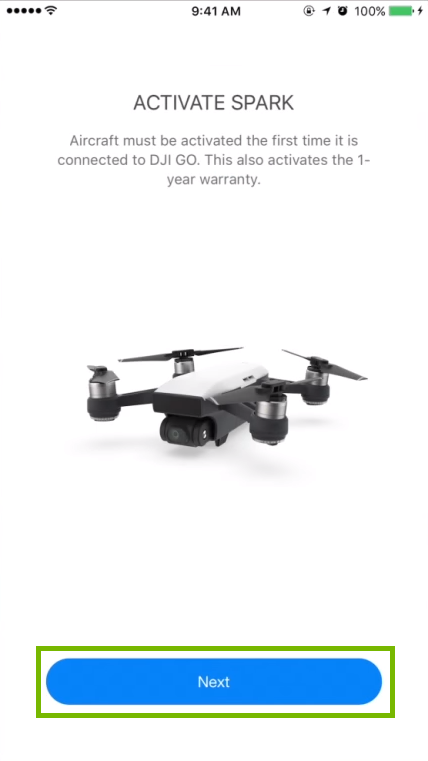

It will prompt you to activate your Spark. Tap Next.
Tap on the checkbox, and tap I Agree.
Name the drone. Then tap Continue.
Choose a measurement system. Then tap Continue.

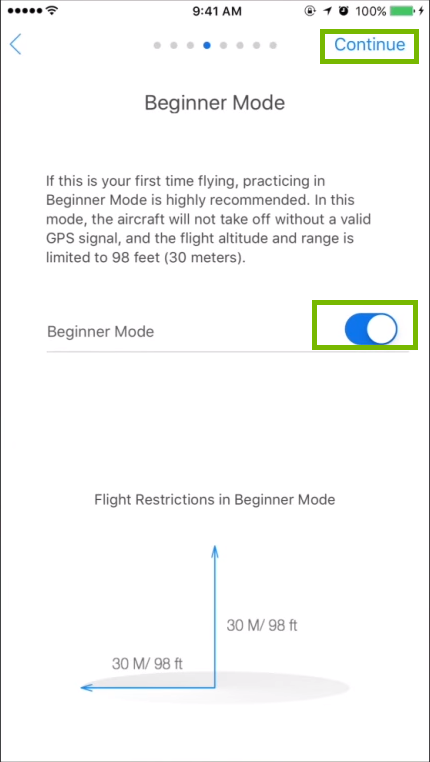

Choose if you want/need Beginner Mode. Then tap Continue.

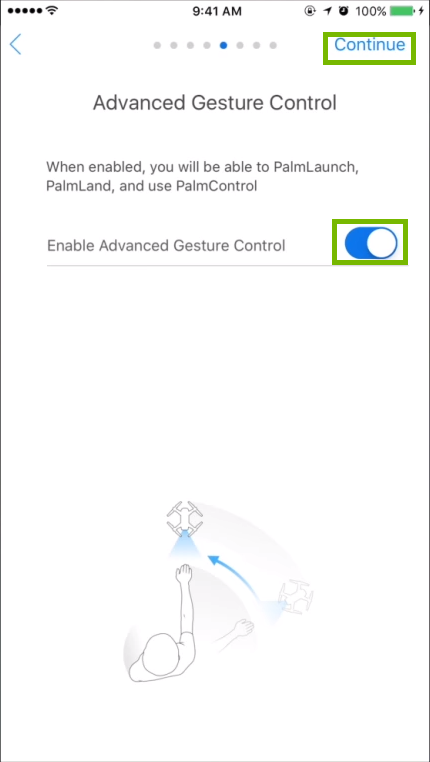

Choose to enable Advanced Gesture Control. Then tap Continue.
Now we want to connect your mobile device to your normal internet.
Click on Home Button.
Go to Settings.
Go to Wi-FI.
Join your normal Wi-Fi.
Go back to Go4 Pro app.

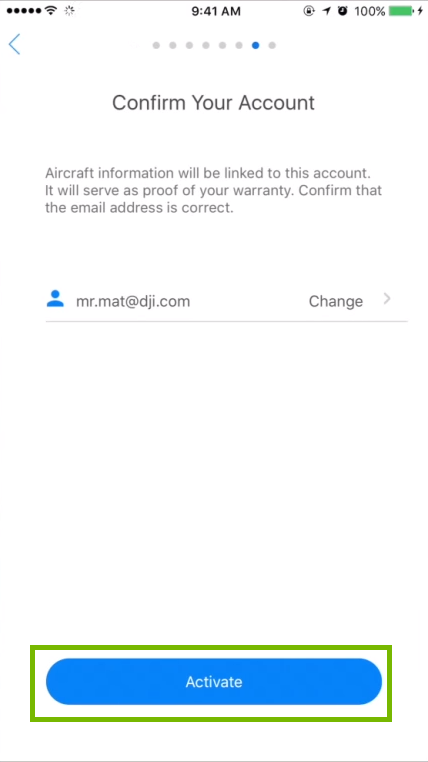

Tap on Activate.
Now we need to connect your Drone's Wi-Fi.
Open Settings on your phone or tablet.
Select Wi-Fi.
Select the Spark network from the list.

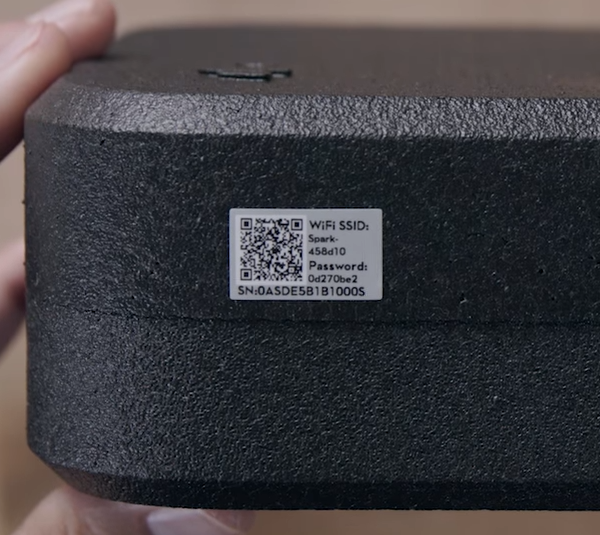

Enter the Wi-Fi password. It is on the side of the box, and inside the battery compartment of your drone. Then select Connect.
Open the DJ Go 4 app on your mobile device.

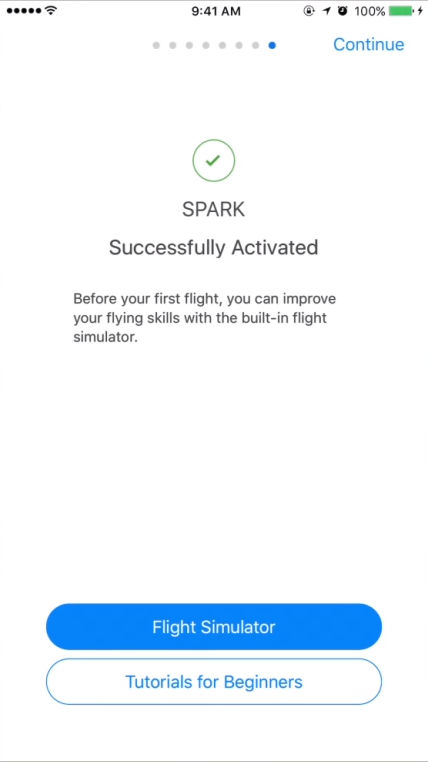

After a few seconds, you are activated.
Congratulations, you are setup and ready to fly!
9. Activation with New Account (Android)
Open the DJ Go 4 app on your mobile device.
Tap I Agree.
Tap the Checkbox, then tap I Agree.
Select which Location information you want to allow the app to have access too. Leaving some items disabled might affect features. Tap Next when done.
The App will ask you if you want to join a product improvement program, it is optional. Choose either Join or Do not consider.
Tap Sign Up.
Fill in information. then tap Sign Up.
Make a password, tap the checkbox, tap Next.
Finish Registration by entering your Name, Gender, and Country/Region. Tap Complete when done.
It will prompt you to activate your Spark. Tap Next.
Tap on the checkbox, and tap I Agree.
Name the drone. Then tap Continue.
Choose a measurement system. Then tap Continue.
Choose if you want/need Beginner Mode. Then tap Continue.
Choose to enable Advanced Gesture Control. Then tap Continue.
Now we want to connect your mobile device to your normal internet.
Click on Home Button.
Go to Settings.
Go to Wi-FI.
Join your normal Wi-Fi.
Go back to Go4 Pro app.
Tap on Activate.
Now we need to connect your Drone's Wi-Fi.
Open Settings on your phone or tablet.
Select Wi-Fi.
Select the Spark network from the list.
Enter the Wi-Fi password. It is on the side of the box, and inside the battery compartment of your drone. Then select Connect.
Open the DJ Go 4 app on your mobile device.
After a few seconds, you are activated.
Congratulations, you are setup and ready to fly!
10. Connect to Wi-Fi (Android)
Open Settings on your phone or tablet.
Make sure Wi-Fi is set to ON.
Select Wi-Fi.
Select the Spark network from the list.
Enter the Wi-Fi password, then select Connect. The Wi-Fi password is on the side of the box, and inside the battery compartment of your drone.
11. Install Android App
Launch the Play Store on your smartphone.

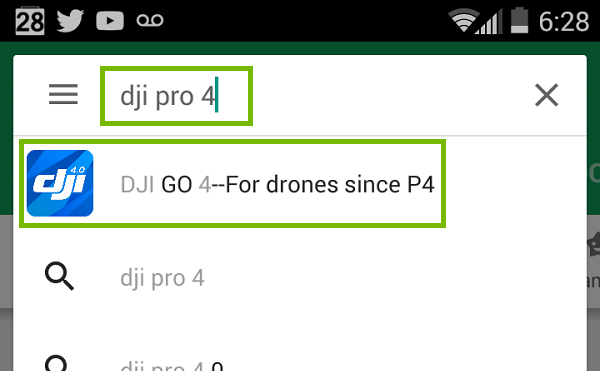

Select the search bar at the top.
Type in DJI Pro 4, then select the found app from the list.
Select Install.
Optional: This app requires special permissions, listed here. Select Accept.
Tap Open to use it.
12. Additional Information
To better assist you, please answer this question.
13. Additional Information
To better assist you, please answer this question.
14. Connect to Wi-Fi with Remote (iOS)
Depending on what device (iPhone, iPad or iPod Touch) and which generation you have, the menu theme and options might look slightly different on your screen. However, the steps should be the same across all iOS devices and generations.
Let's first connect your RC to your drone. Turn on your drone.
Turn on your Remote Control (RC) by pressing the Power button. The indicator light should be red.
Push the Power button for 3 seconds. The lights on the drone should be blinking red.
On the controller press and hold the Flight Pause Button and the Function Button and the customize button simultaneously.
The indicator light should turn green.
Your drone is now connected to your Remote Control. We will now connect your mobile device to your Remote Control.
Open Settings on your phone or tablet.
Tap Wi-Fi.
Locate and tap the Spark-RC network.

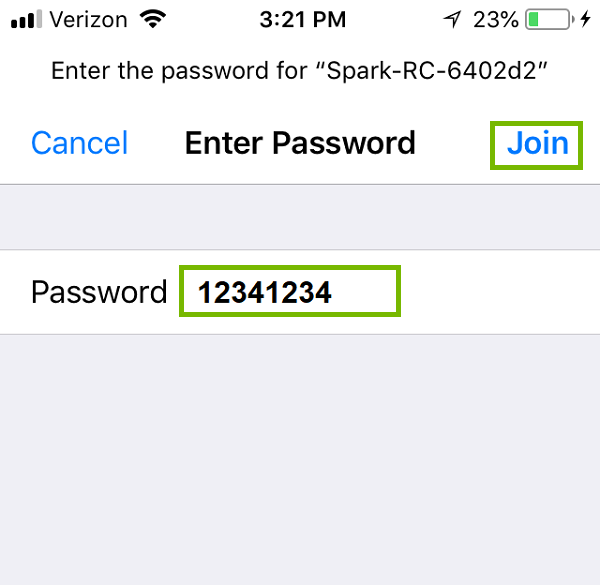

Enter in the Wi-Fi password "12341234", then tap Join to connect.
15. Additional Information
To better assist you, please answer this question.
16. Activation with Existing Account (iOS)
Open the DJ Go 4 app on your mobile device.
Tap I Agree.
Tap the Checkbox, then tap I Agree.
Select which Location information you want to allow the app to have access too. Leaving some items disabled might affect features. Tap Next when done.
The App will ask you if you want to join a product improvement program, it is optional. Choose either Join or Do not consider.
Tap Sign In.
It will prompt you to activate your Spark. Tap Next.
Tap on the checkbox, and tap I Agree.
Name the drone. Then tap Continue.
Choose a measurement system. Then tap Continue.
Choose if you want/need Beginner Mode. Then tap Continue.
Choose to enable Advanced Gesture Control. Then tap Continue.
Now we want to connect your mobile device to your normal internet.
Open Settings on your phone or tablet.
Tap Wi-Fi.
Locate and tap Your Wi-Fi network.
If needed, enter in the Wi-Fi password. Tap Join.
Go back to Go4 Pro app.
Tap on Activate.
Now we need to connect your Drone's Wi-Fi.
Open Settings on your phone or tablet.
Tap Wi-Fi.

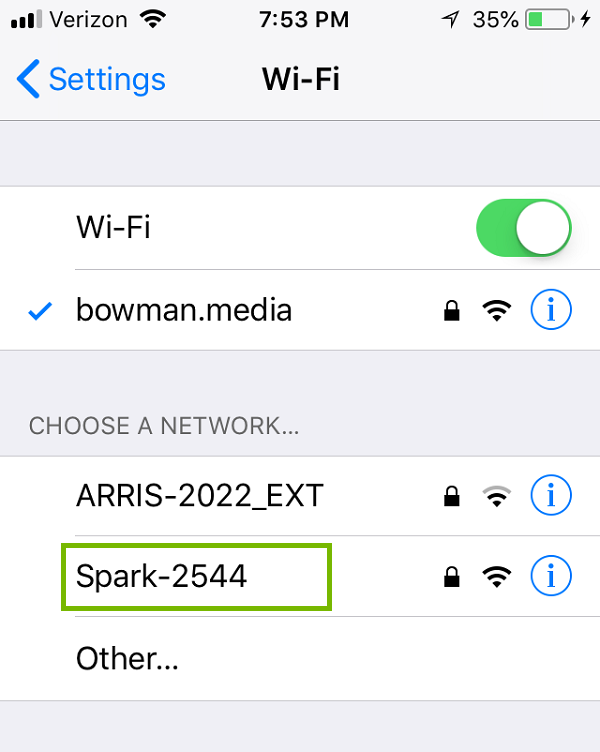

Locate and tap the Spark network.

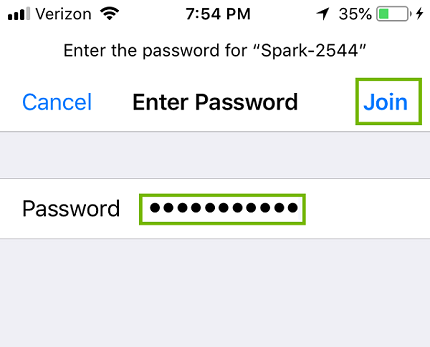

Enter in the Wi-Fi password. It is located on the box, or in the battery compartment of your Spark. Tap Join.
Open the DJ Go 4 app on your mobile device.
After a few seconds, you are activated.
Congratulations, you are setup and ready to fly!
17. Activation with New Account (iOS)
Open the DJ Go 4 app on your mobile device.
Tap I Agree.
Tap the Checkbox, then tap I Agree.
Select which Location information you want to allow the app to have access too. Leaving some items disabled might affect features. Tap Next when done.
The App will ask you if you want to join a product improvement program, it is optional. Choose either Join or Do not consider.
Tap Sign Up.
Fill in information. then tap Sign Up.
Make a password, tap the checkbox, tap Next.
Finish Registration by entering your Name, Gender, and Country/Region. Tap Complete when done.
It will prompt you to activate your Spark. Tap Next.
Tap on the checkbox, and tap I Agree.
Name the drone. Then tap Continue.
Choose a measurement system. Then tap Continue.
Choose if you want/need Beginner Mode. Then tap Continue.
Choose to enable Advanced Gesture Control. Then tap Continue.
Now we want to connect your mobile device to your normal internet.
Open Settings on your phone or tablet.
Tap Wi-Fi.
Locate and tap Your Wi-Fi network.
If needed, enter in the Wi-Fi password. Tap Join.
Go back to Go4 Pro app.
Tap on Activate.
Now we need to connect your Drone's Wi-Fi.
Open Settings on your phone or tablet.
Tap Wi-Fi.
Locate and tap the Spark network.
Enter in the Wi-Fi password. It is located on the box, or in the battery compartment of your Spark. Tap Join.
Open the DJ Go 4 app on your mobile device.
After a few seconds, you are activated.
Congratulations, you are setup and ready to fly!
18. Connect to Wi-Fi (iOS)
Depending on what device (iPhone, iPad or iPod Touch) and which generation you have, the menu theme and options might look slightly different on your screen. However, the steps should be the same across all iOS devices and generations.
Open Settings on your phone or tablet.
Tap Wi-Fi.
Locate and tap the Spark network.
Enter in the Wi-Fi password, then Join. The password is located on the box, or in the battery compartment of your Spark.
19. Install iOS App
Launch the App Store.
Tap Search in the bottom right corner.
Type DJI Pro 4 in the search bar at the top. The app will show up below. Tap Get, then Install and finally Open.
