Authored by: Support.com Tech Pro Team
DVR's have become such a part of our lives that ISPs like Comcast are providing them now. With your Xfinity X1 DVR you can record a program while you're watching another program, while you're at work, or even while you're watching that exact same program. You can record up to six shows at a time by setting the recorder ahead of the program. You can then watch and delete them when you're done.
This guide also covers getting to know the various remotes you may be given with your DVR.
Tools You'll Need:
-->
Supplies You'll Need:
-->
Before You Begin:
You must have this thing before you whatever.
-->
Comcast offers a number of different remotes that are used with a number of different cable adapters.
XR15 - Voice Remote
XR11 - Voice Remote
XR2
XR5

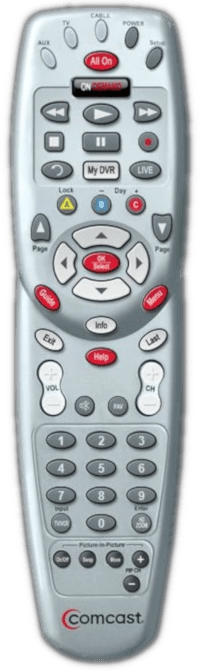

Silver with Red OK & Select Button

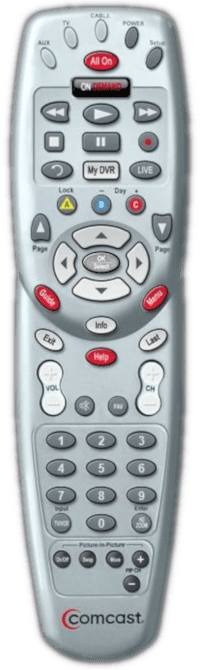

Silver with Gray OK & Select Button
 

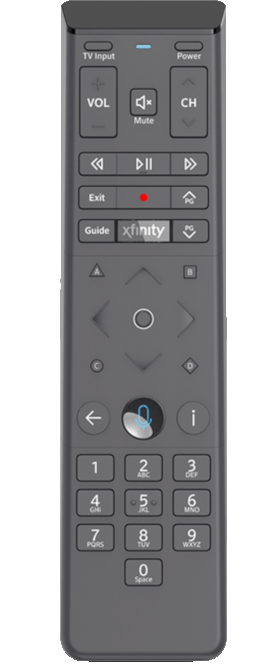

XR15
  
XR15 - Voice Remote
TV Input
Changes the input on your television, so you can choose between different devices connected. For example, your cable box, blu ray player, game console, etc.
Power
Turns on your cable box and television at the same time.
Volume + / -
Increase and decrease the volume.
Mute
Mutes or silences the audio.
Channel Up / Down
Change the channel up or down by one.
Rewind
Rewinds live TV or a recorded program.
Play / Pause
Pauses live TV or a recorded program. Resumes the program if it's paused.
Fast Forward
Fast forwards a recorded program.
Exit
Exit the menu you are currently in.
Record
Record the program you are currently watching to the DVR.
Pg Up
Jumps up an entire page in the Guide.
Guide
Shows the programming guide, so it's easier to find a program you want to watch or record.
Xfinity
Opens the main Xfinity menu with the Guide, saved programs, On Demand programming, apps, search and settings.
Pg Down
Jumps down an entire page in the Guide.
Triangle A
Shows help for the current program or menu you're using.
Square B
Open Accessibility Settings menu, to turn on and off Closed Captioning and other features.
Circle C
Opens the Sports app to see scores even while watching television.
Diamond D
Delete a recording from your DVR.
Up / Down / Left / Right
Navigate in menus and the Guide.
While watching a program, the Right Arrow brings up the mini-guide.
The Down arrow brings up the on-screen playback controls when watching something recorded.
Confirm / OK
Select what you have highlighted on the screen in a menu. This button is at the center of the direction pad.
Back
Go back one channel, or a list of channels and programs you've watched recently.
Microphone
Push and hold to search for a program or access menus using voice commands.
Information
Shows information about the current program or recording.
Number Pad
Directly tune to a specific channel by typing in its number.
Search for a channel using the built in predictive text input.
XR11
XR11 - Voice Remote
TV Power
Turns on or off just your television, not the cable box.
All Power
Turns on your cable box and television at the same time.
Volume + / -
Increase and decrease the volume.
Mute
Mutes or silences the audio.
Replay
Jumps back 15 seconds on live television or a recording. This is so you can re-watch a segment of a game or show.
Channel Up / Down
Change the channel up or down by one.
Rewind
Rewinds live TV or a recorded program.
Play / Pause
Pauses live TV or a recorded program. Resumes the program if it's paused.
Fast Forward
Fast forwards a recorded program.
Exit
Exit the menu you are currently in.
Microphone
Push and hold to search for a program or access menus using voice commands.
Record
Record the program you are currently watching to the DVR.
Guide
Shows the programming guide, so it's easier to find a program you want to watch or record.
Xfinity
Opens the main Xfinity menu with the Guide, saved programs, On Demand programming, apps, search and settings.
Page Up
Jumps up an entire page in the Guide.
Up / Down / Left / Right
Navigate in menus and the Guide.
While watching a program, the Right Arrow brings up the mini-guide.
The Down arrow brings up the on-screen playback controls when watching something recorded.
OK
Select what you have highlighted on the screen in a menu.
Last
Go back one channel, or a list of channels and programs you've watched recently.
Info
Shows information about the current program or recording.
Page Down
Jumps down an entire page in the Guide.
Triangle A
Shows help for the current program or menu you're using.
Square B
Open Accessibility Settings menu, to turn on and off Closed Captioning and other features.
Circle C
Opens the Sports app to see scores even while watching television.
Diamond D
Delete a recording from your DVR.
Number Pad
Directly tune to a specific channel by typing in its number.
Search for a channel using the built in predictive text input.
Setup
Pair the voice remote to your TV Box or program to control your television or A/V receiver to work with your remote.
TV Input
Changes the input on your television, so you can choose between different devices connected. For example, your cable box, blu ray player, game console, etc.

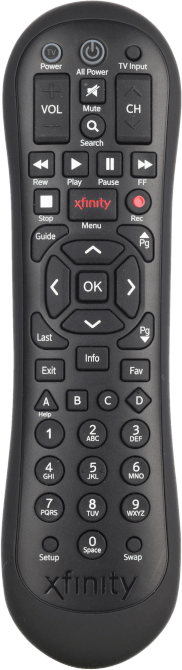

XR2
XR2
TV Power
Turns on or off just your television, not the cable box.
All Power
Turns on your cable box and television at the same time.
TV Input
Changes the input on your television, so you can choose between different devices connected. For example, your cable box, blu ray player, game console, etc.
Volume + / -
Increase and decrease the volume.
Mute
Mutes or silences the audio.
Search
Search for programs.
Channel Up / Down
Change the channel up or down by one.
Rewind
Rewinds live TV or a recorded program.
Play
Resumes the program if it's paused.
Pause
Pauses live TV or a recorded program.
Fast Forward
Fast forwards a recorded program.
Stop
Stops playback and returns you to the menu or live television.
Xfinity
Opens the main Xfinity menu with the Guide, saved programs, On Demand programming, apps, search and settings.
Record
Record the program you are currently watching to the DVR.
Guide
Shows the programming guide, so it's easier to find a program you want to watch or record.
Page Up
Jumps up an entire page in the Guide.
Up / Down / Left / Right
Navigate in menus and the Guide.
While watching a program, the Right Arrow brings up the mini-guide.
The Down arrow brings up the on-screen playback controls when watching something recorded.
OK
Select what you have highlighted on the screen in a menu.
Last
Go back one channel, or a list of channels and programs you've watched recently.
Page Down
Jumps down an entire page in the Guide.
Info
Shows information about the current program or recording.
Exit
Exit the menu you are currently in.
Fav
Opens your list of favorite programs and channels.
Triangle A
Shows help for the current program or menu you're using.
Square B
Open Accessibility Settings menu, to turn on and off Closed Captioning and other features.
Circle C
Opens the Sports app to see scores even while watching television.
Diamond D
Delete a recording from your DVR.
Number Pad
Directly tune to a specific channel by typing in its number.
Search for a channel using the built in predictive text input.
Setup
Pair the voice remote to your TV Box or program to control your television or A/V receiver to work with your remote.
Swap
Swap between the program you are watching, and the last program you watched.

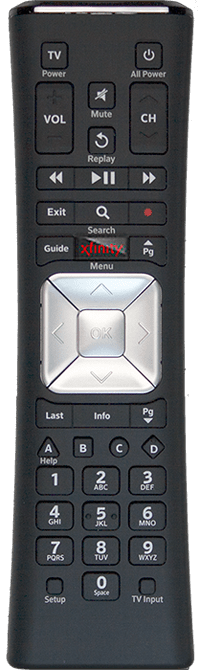

XR5
XR5
TV Power
Turns on or off just your television, not the cable box.
All Power
Turns on your cable box and television at the same time.
Volume + / -
Increase and decrease the volume.
Mute
Mutes or silences the audio.
Replay
Jumps back 15 seconds on live television or a recording. This is so you can re-watch a segment of a game or show.
Channel Up / Down
Change the channel up or down by one.
Rewind
Rewinds live TV or a recorded program.
Play / Pause
Pauses live TV or a recorded program. Resumes the program if it's paused.
Fast Forward
Fast forwards a recorded program.
Exit
Exit the menu you are currently in.
Search
Search for programs
Record
Record the program you are currently watching to the DVR.
Guide
Shows the programming guide, so it's easier to find a program you want to watch or record.
Xfinity
Opens the main Xfinity menu with the Guide, saved programs, On Demand programming, apps, search and settings.
Page Up
Jumps up an entire page in the Guide.
Up / Down / Left / Right
Navigate in menus and the Guide.
While watching a program, the Right Arrow brings up the mini-guide.
The Down arrow brings up the on-screen playback controls when watching something recorded.
OK
Select what you have highlighted on the screen in a menu.
Last
Go back one channel, or a list of channels and programs you've watched recently.
Info
Shows information about the current program or recording.
Page Down
Jumps down an entire page in the Guide.
Triangle A
Shows help for the current program or menu you're using.
Square B
Open Accessibility Settings menu, to turn on and off Closed Captioning and other features.
Circle C
Opens the Sports app to see scores even while watching television.
Diamond D
Delete a recording from your DVR.
Number Pad
Directly tune to a specific channel by typing in its number.
Search for a channel using the built in predictive text input.
Setup
Pair the voice remote to your TV Box or program to control your television or A/V receiver to work with your remote.
TV Input
Changes the input on your television, so you can choose between different devices connected. For example, your cable box, blu ray player, game console, etc.
Silver
Silver Remote
Aux
Selects the Aux device (such as a Blu Ray Player) to control.
TV
Selects the Television to control.
Cable
Selects your Comcast cable box to control.
POWER
Turns on or off the device you selected.
Setup
Setup your universal remote to control your TV or other device.
All On
Turns on your Television and Cable box.
On Demand
Opens the Comcast Xfinity video On Demand service.
Rewind
Rewinds live TV or a recorded program.
Play
Resumes the program if it's paused.
Fast Forward
Fast forwards a recorded program.
Stop
Fast forwards a recorded program.
Pause
Pauses live TV or a recorded program.
Record
Record the program you are currently watching to the DVR.
Back
Jumps back 15 seconds on live television or a recording. This is so you can re-watch a segment of a game or show.
My DVR
Open your DVR recordings and features.
LIVE
When watching a show you've paused or rewound, lets you jump to the current live broadcast.
A / Lock
Block a channel or program.
B / Day -
Jump back 24 hours in the guide.
C / Day +
Jump forward 24 hours in the guide.
Page Up
Move up a page in the menu, back when watching a program.
Page Down
Move down a page in the menu, or forward when watching a program.
Arrow Pad
Navigate in menus and the Guide.
While watching a program, the Right Arrow brings up the mini-guide.
The Down arrow brings up the on-screen playback controls when watching something recorded.
Ok / Select
Select what you have highlighted on the screen in a menu.
Guide
Shows the programming guide, so it's easier to find a program you want to watch or record.
Info
Shows information about the current program or recording.
Menu
Opens the main menu for your cable box, giving you access to the DVR, On Demand, Search, and Settings.
Exit
Exit the menu you are currently in.
Help
Opens the Help menu, to provide more information about using your cable television services.
Last
Go back one channel, or a list of channels and programs you've watched recently.
Volume
Increase and decrease the volume.
Mute
Mutes or silences the audio.
Favorite
Opens your list of favorite programs and channels.
Channel
Change the channel up or down by one.
Number Pad
Directly tune to a specific channel by typing in its number.
TV/VCR
When you select TV at the top
HD Zoom
On an older standard-definition television, or with a standard-definition broadcast on a high-definition television, pressing this will cycle how the show is displayed on your television.
Picture-in-Picture On-Off
Turns picture-in-picture mode on or off, showing a small window of the previous channel you were watching in the corner.
Picture-in-Picture Swap
Swap between the program you're watching, and what's in the picture-in-picture window.
Picture-in-Picture Move
Moves the picture-in-picture window to a different corner of your screen.
Picture-in-Picture Channel +
Changes the picture-in-picture window's channel up by one.
Picture-in-Picture Channel -
Changes the picture-in-picture window's channel down by one.
Your television doesn't even need to be on; your Xfinity DVR will take care of your recordings for you, including when you're at work, or even watching another program.
You may wish to record the program you are watching right at that moment.
Your DVR is 'always recording' what you are watching on cable TV, but does not save the recording by default. It does this to allow you to rewind or pause live TV, but only has a small buffer of about 25 minutes, and it disappears when you change channels.
Support.com is committed to your privacy
We do not share or sell your data to third parties. We do use cookies and other third-party technologies to improve our site and services. The California Consumer Privacy Act (CCPA) gives you the ability to opt out of the use of cookies, third-party technologies and/or the future sale of your data. Do not sell my personal information.
Support.com is committed to your privacy
Read our Privacy Policy for a clear explanation of how we collect, use, disclose and store your information
