How to Use a TP-Link RE450 AC1750 WiFi Repeater

Authored by: Support.com Tech Pro Team

1. Introduction

In This Guide

You'll Learn:

• How to use your TP-Link Range Extender.

2. How to Set Up Your TP-Link RE450 AC1750 Wi-Fi Range Extender

Show Me How

Clicking this button will open a new guide that will provide you with steps to resolve your issue.

3. How to Proceed?

Please select an option to proceed.

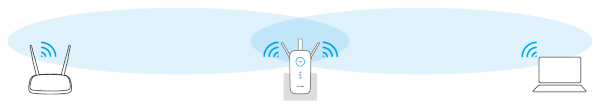

4. Find Optimal Position

The purpose of a Wi-Fi range extender is to expand the Wi-Fi coverage in your home, by capturing the signal from your wireless router and expanding it further. To accomplish this, you need to place the range extender within the existing coverage area of your wireless router. However, to maintain an excellent wireless signal for your Wi-Fi devices, the range extender needs to be positioned within optimal distance from the wireless router. Here's how to accomplish this:

1. Plug your range extender into an available power outlet in the area you'd like to expand your home's Wi-Fi coverage to.

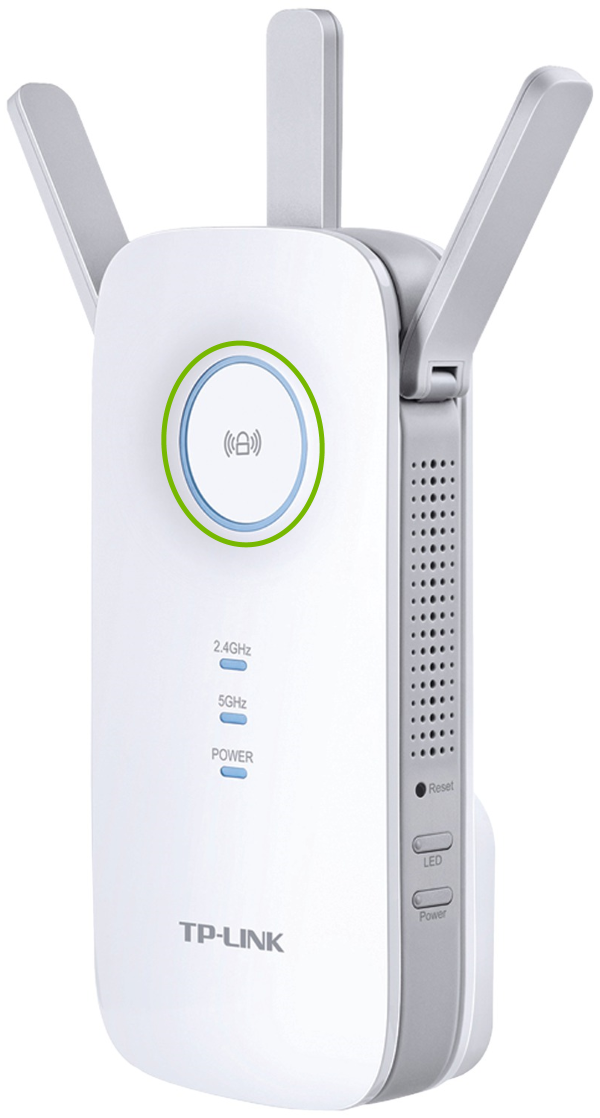

2. Check the circular status light on the front of the range extender:


1. Solid Blue

1. Indicates an excellent wireless signal.
2. Solid Red

1. Indicates a weak wireless signal.
2. If the status indicator light shows a weak signal, plug the range extender into a power outlet that's a bit closer to your wireless router.


1. Repeat this process until the range extender indicates an excellent signal.

5. How to Update Your TP-Link RE450 AC1750 Wi-Fi Range Extender

Show Me How

Clicking this button will open a new guide that will provide you with steps to resolve your issue.

6. Indicator Lights

The indicator lights on the TP-Link RE450 AC1750 Range Extender have the following meanings:

Wi-Fi Status (1)

Solid Blue

Connected to wireless router with excellent signal.

Solid Red

Connected to wireless router with weak signal.

Blinking Blue

WPS connection is being established.

Off

Not connected to wireless router.

Wi-Fi Band (2 / 3)

Solid Blue

Connected to 2.4GHz / 5GHz wireless network.

Off

Not connected to 2.4GHz / 5GHz wireless network.

Power (4)

Solid Blue

Range extender is on.

Blinking Blue

Range extender is starting up or updating.

Off

Range extender is off.

7. Check Status

You can check the status of your TP-Link RE450 AC1750 Range Extender in three ways:

• On the device itself,
• On a mobile device.
• On a computer.

The type and amount of network related information that you get depends on which method you use.

On Your Range Extender

1. Check the Wi-Fi indicator lights on the front of the range extender:


1. Wi-Fi Status (1)
2. Solid Blue

1. Connected to wireless router with excellent signal.
2. Solid Red

1. Connected to wireless router with weak signal.
2. Blinking Blue

1. WPS connection is being established.
2. Off

1. Not connected to wireless router.
2.

3. Wi-Fi Band (2 / 3)
4. Solid Blue

1. Connected to 2.4GHz / 5GHz wireless network.
2. Off

1. Not connected to 2.4GHz / 5GHz wireless network.

On Your Mobile Device

1. Launch the TP-Link Tether app.


1. Select your range extender then login with the admin credentials set on it.
2. You will be taken to the Status page.


1. The status page will show the range extender's connection to the router and to your devices. Click each item to show more details about it.

On Your Computer

1. Launch the browser that you use to go online.


1. Navigate to tplinkrepeater.net and login with the admin credentials set on your range extender.


1. You will be taken to the Status page.


1.

2. The status page will show the router's connection to the internet, the range extender's connection to the router, and connection to your devices. Click each item to show more details about it.

8. Retrieve Wi-Fi Network Name

In order to connect to a range extender's Wi-Fi you need to know the Wi-Fi credentials set on that range extender. They are the Wi-Fi network name (SSID) and the Wi-Fi password (security key).

To retrieve the Wi-Fi credentials set on your TP-Link range extender you need to use a computer:

1. Launch the browser that you use to go online.


1. Navigate to tplinkrepeater.net and login with the admin credentials set on your range extender.


1. You will be taken to the Status page. Click on the range extender and it will show the Wi-Fi network name as the SSID for each extended network. The Wi-Fi password is the same as on your wireless router.


1. You can then use the retrieved Wi-Fi network name to connect any device to the range extender's Wi-Fi.

9. I Can't Remember My Wi-Fi Password

Show Me HowClicking this button will open a new guide that will provide you with steps to resolve your issue.

10. OS Choice

To continue, we need to know what Operating System your computer or mobile device has.

For Computers

There are 2 main Operating Systems for personal computers currently available, Windows and macOS.

Windows

Windows runs on computers produced by multiple companies, such as Lenovo, Asus, Dell, Toshiba, Hewlett Packard, Acer, and Sony.

macOS

Apple is the only company that makes macOS computers.

For Mobile Devices

There are 2 main Operating Systems for smartphones currently available, Android and iOS.

Android

Android smartphones are produced by multiple companies, such as Samsung, LG, Motorola, Sony, Nokia, Lenovo, and HTC.

iOS

Apple is the only company that makes iOS smartphones.

11. Connect to Network (Windows 10)

Windows 10 may show slightly different options, but the steps should be similar across all versions of Windows 10.

1. Select the Network icon in the bottom right.


1. Select the the network name you setup during the extender setup.


1. Select Connect.


If you're asked for a password, it's the one you just setup on your range extender.

12. Connect to Network (macOS)

macOS may show slightly different options, but the steps should be similar across all versions and themes on macOS.

1. Select Wi-Fi from the menu bar, then select the extended network you just setup.


If you're asked for a password, it's the one you just setup on your range extender.

13. Connect to Network (Android)

Depending on your exact device (Smartphone or Tablet), and which generation you have, the menu theme and options might look slightly different on your screen. However, the steps should be similar across all Android devices and generations.

1. Open Settings.


1. Select Wi-Fi.


1. Select your extended network from the list.


1.

2. If you're asked for a password, it's the one you just setup on your range extender.

14. Connect to Network (iOS)

Depending on your exact device (Smartphone or Tablet), and which generation you have, the menu theme and options might look slightly different on your screen. However, the steps should be similar across all Apple iOS devices and generations.

1. Open Settings.


1. Select Wi-Fi.


1. Select the extended network you just setup from the list.


1.

2. If you're asked for a password, it's the one you just setup on your range extender.
