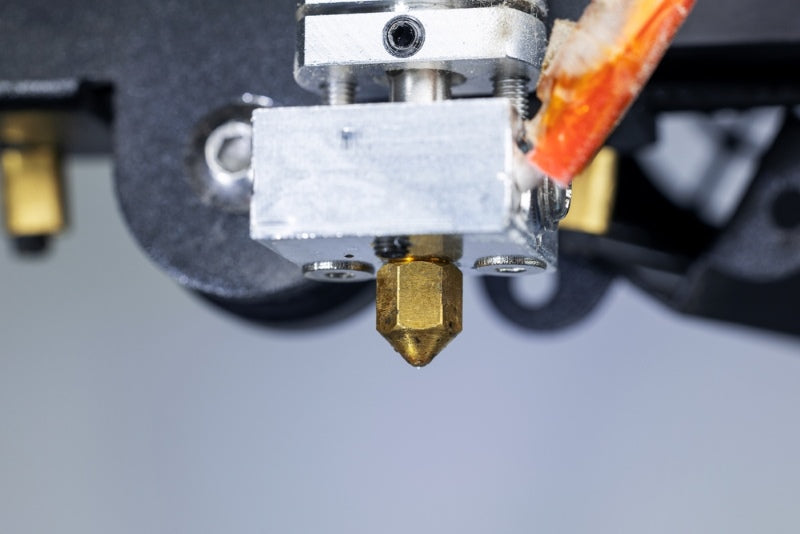

How to Replace a 3D Printer Nozzle?

Replacing the nozzle of your 3D printer is essential for maintaining optimal print quality and performance. Over time, nozzles can wear out, get clogged, or degrade, leading to poor print results. Here's a detailed step-by-step guide to help you replace your 3D printer’s nozzle safely and effectively.

 Tools and Materials You’ll Need

- A replacement nozzle (check your printer’s specifications for nozzle size and material)

- Adjustable wrench or socket wrench

- Small nozzle wrench or pliers

- Needle-nose pliers or tweezers

- Cleaning filament (optional but recommended)

- Hotend cleaning kit (optional but useful for deep cleaning)

- Thermal gloves (to protect your hands from the heated nozzle)

- Heat-resistant silicone mat or surface (optional)

 Step 1: Turn Off and Unplug the Printer

Safety first! Ensure your 3D printer is turned off and unplugged before starting any work. This prevents accidental electrical shocks or damage to the printer.

 Step 2: Heat the Nozzle

Before removing the nozzle, heat it to the operating temperature (generally between 200°C - 250°C depending on the filament type). Heating the nozzle ensures that any filament inside softens, making the nozzle easier to remove. Follow these steps:

1. Turn on the printer.

2. Set the hotend temperature through the printer's control interface.

3. Wait until the nozzle reaches the target temperature.

Tip: Be cautious when handling the nozzle at high temperatures!

 Step 3: Remove the Existing Nozzle

Once the nozzle is heated:

1. Hold the Heater Block: Use a wrench to hold the heater block in place to avoid damaging the hotend.

2. Loosen the Nozzle: Use the appropriate wrench or nozzle removal tool to unscrew the nozzle. Turn the tool counterclockwise to loosen it. If the nozzle is stuck, carefully apply more heat.

3. Remove the Nozzle: Use tweezers or needle-nose pliers to fully remove the nozzle from the hotend once it’s loose. Be very careful to avoid burning yourself.

 Step 4: Clean the Hotend

Before installing the new nozzle, clean the hotend thoroughly:

- Use a soft brush or cleaning filament to remove any remaining filament or debris from the hotend.

- If necessary, you can use a hotend cleaning kit to ensure the inside is clear of any blockages or residue. This step helps maintain a clean filament path for future prints.

 Step 5: Install the New Nozzle

Once the old nozzle is removed and the hotend is clean, follow these steps to install the new one:

1. Preheat the Hotend: Keep the hotend heated to ensure that the nozzle will thread smoothly.

2. Thread the New Nozzle: Carefully thread the new nozzle into the hotend by hand. Be careful not to cross-thread it—start slowly and make sure the nozzle screws in evenly.

3. Tighten the Nozzle: Once the nozzle is hand-tightened, use your wrench to snug it up. Do not overtighten, as this can strip the threads or damage the heater block.

Note: A typical nozzle requires only slight tightening after hand-threading.

 Step 6: Cool Down the Printer

After the new nozzle is installed, turn off the printer and allow it to cool down. Let the hotend reach room temperature before proceeding with any testing or filament loading.

 Step 7: Test the New Nozzle

Once the nozzle is securely installed and the printer is cooled:

1. Reload Filament: Load your preferred filament type and preheat the printer.

2. Check for Flow: Extrude a small amount of filament to ensure smooth flow through the new nozzle. If the filament extrudes cleanly, you're ready to print!

3. Print a Test Model: Consider printing a small calibration model to verify that the new nozzle is performing correctly and that the printer’s settings are aligned with the nozzle’s size.

 Additional Tips

- Use a Compatible Nozzle: Always ensure that the replacement nozzle is compatible with your printer model, and select a nozzle material suitable for your printing needs (e.g., brass, steel, or hardened nozzles for abrasive filaments).

- Clean Nozzles Regularly: Regularly clean your nozzles using a hotend cleaning filament or nozzle cleaning tool to prevent clogs and extend the life of the nozzle.

- Consider Different Nozzle Sizes: Different nozzle diameters can impact print resolution and speed. Larger nozzles (e.g., 0.8mm) are ideal for faster prints, while smaller nozzles (e.g., 0.2mm) offer greater detail.

By following these steps, you’ll be able to replace your 3D printer’s nozzle, ensuring high-quality prints and avoiding common issues like clogs or inconsistent extrusion.
